Scaling charts

Softdrill NL



The tension (or torque or normal force) chart can be rescaled easily with the mouse.  This does not apply to the Inclination/DLS chart as this chart will automatically rescale to stay synchronized with the tension/torque/normal force chart. The following options are available:



Use the mouse wheel to zoom in or out.

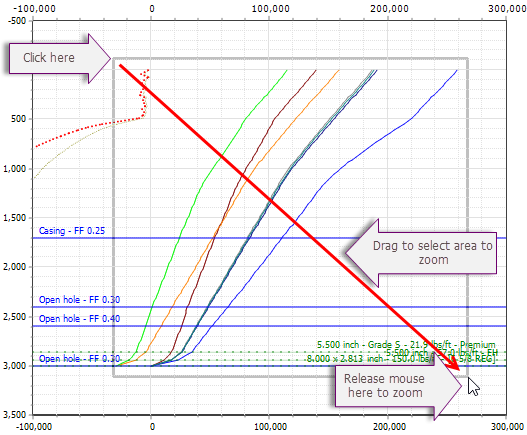

Click somewhere on the chart and drag to the right and down (whilst holding the mouse button) to select an area of the chart to zoom in on.





Do the reverse (click and drag to left and up) to reset the chart to its original scaling.

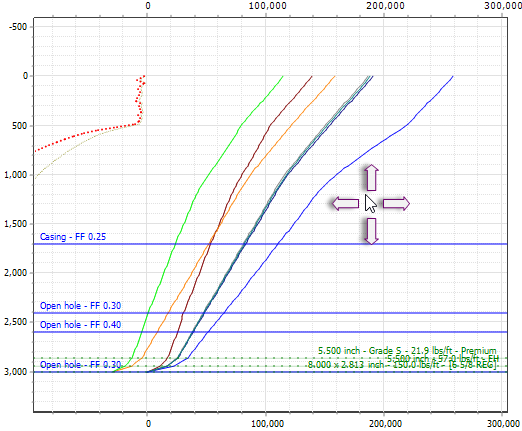

Move the mouse whilst holding the right mouse button to pan the chart
